Setting Java Development Kit (JDK) Environment Variables
In Provar, Apache ANT can run a Provar test suite via the command line or a Continuous Integration (CI) server such as Jenkins. Before generating a build file, install Java Development Kit (JDK) and configure the environment variables. You can follow the steps below to complete these actions.
How To Install Java Development Kit
Step 1: Download a compatible version of Java JDK. We recommend Amazon Corretto 11.
Compatible versions include:
- 18.104.22.168, 22.214.171.124, 126.96.36.199, 188.8.131.52, 184.108.40.206
Note: You can reference the Java version mismatch error support article to learn how to resolve related error messages.
Step 2: Complete the installation by following the prompts. Be sure to take note of the installation directory information, e.g., C:\Program Files\Java\jdk1.8.0_221. You will need to add this information to the environment variable settings later.
Set the JAVA_HOME Environment Variable on a Windows Machine
Step 1: Open the System Control panel. Then select the Advanced tab.
Above: View the Advanced tab within System Properties.

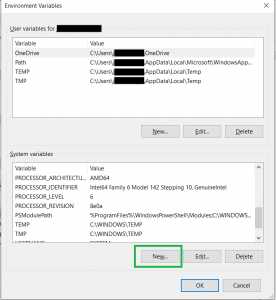

Step 2: Click the Environment Variables button. The following dialog box will appear.
Above: View of the Environment Variables dialog box.
Step 3: Click the New button below System variables.
Step 4: Within the Variable name field, enter JAVA_HOME. Within the Variable value field, enter the directory where Java JDK was extracted previously, e.g., C:\Program Files\Java\jdk1.8.0_221.
Step 5: Then click the OK button.

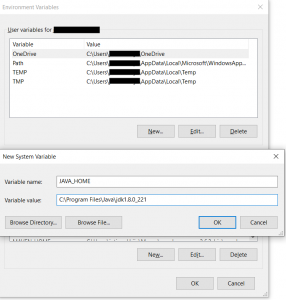

Above: View of New System Variable dialog box.

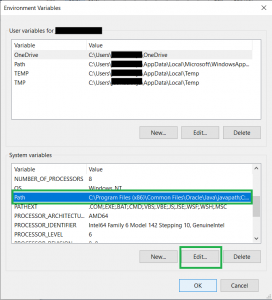

Step 6: Click the Edit button to the Path variable in the System variables section.

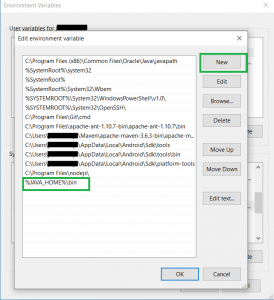

Step 7: Click the New button and type %JAVA_HOME%\bin in the row at the bottom of the list.
Step 8: Click OK and restart your system.
Step 9: To verify that you have installed the correct Java version, open the command prompt and type the following command:
Set the JAVA_HOME Environment Variable on a Mac

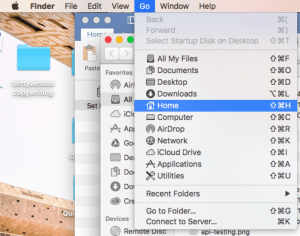

Step 1: Navigate to your user home directory. The fastest way to do this is to use Shift + Command + H or open Finder, select Go in the menubar, and click Home.
Step 2: Find the .bash_profile. The .bash_profile may be hidden. If so, use command+shift+period to make hidden files visible.
Note: The command above does include a period/dot after the second plus sign.
Step 3: If you still do not see the .bash_profile, use the following command within the terminal to display the file:

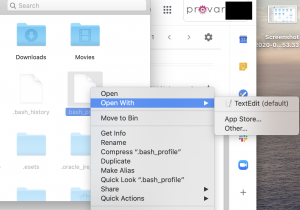

Step 4: Right-click on the .bash_profile file and select Open With > TextEdit.
Step 5: Add the following command:
Step 6: Export JAVA_HOME to PATH with the following command:
Step 7: Now restart your machine or use the following command:
Step 8: Type the following command:
Note: It should now display the JDK version information. The subversion may be different from the screenshot below.
